Gevlochten aramide sleeve – Veelgestelde vragen (FAQ)

Technical answers to common questions about braided aramid sleeve for hose and cable protection.

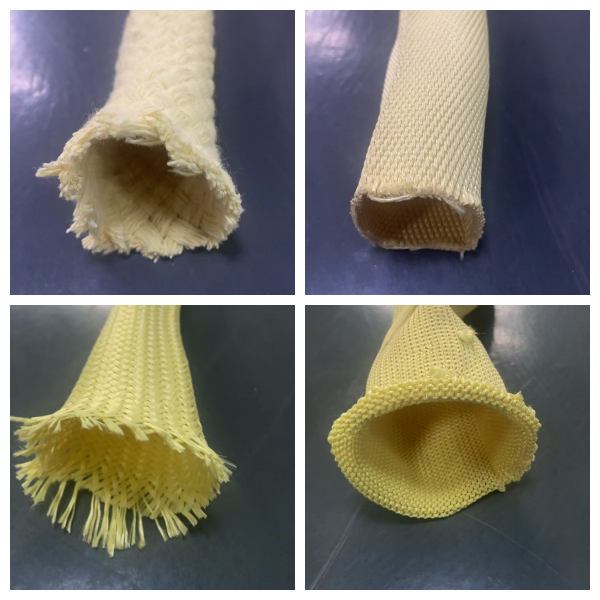

1. What is a braided aramid sleeve?

A braided aramid sleeve is a high-strength protective sleeving made from aramid fibers and constructed in a braided tubular form. It is designed to protect hoses, cables, and wire harnesses from abrasion, cutting, and mechanical wear in industrial environments where external damage is the primary failure risk.

2. What is a braided aramid sleeve mainly used for?

A braided aramid sleeve is mainly used for abrasion protection , not thermal insulation. It is commonly applied to hydraulic hoses, pneumatic lines, and cable assemblies that experience continuous movement, vibration, or contact with metal structures and sharp edges. For this reason, braided aramid sleeve is often selected as an aramid sleeve for abrasion protection in applications involving movement, vibration, and contact with metal surfaces.

3. Is braided aramid sleeve heat resistant or fire resistant?

Braided aramid sleeves offer limited heat tolerance , but they are not designed for fire resistance or thermal insulation . They should not be used for direct flame exposure or radiant heat protection.
For fire-dominant environments, fire sleeves or thermal protection sleeves are more appropriate.

4. Can braided aramid sleeve be used on hydraulic hoses?

Yes. Braided aramid sleeves are widely used on hydraulic hoses to protect the outer hose cover from abrasion, cutting, and mechanical wear. They help extend hose service life and reduce the risk of external damage, especially in mobile or high-vibration equipment.

5. What is the difference between braided aramid sleeve and PET sleeve?

The main difference lies in mechanical strength and durability .
Compared to PET sleeves, braided aramid sleeves provide significantly higher abrasion resistance, better cut resistance, and longer service life in harsh mechanical environments. PET sleeves are typically suitable for light-duty applications, while aramid sleeves are preferred for heavy-duty industrial use.

6. In which industries are braided aramid sleeves commonly used?

Braided aramid sleeves are commonly used in industries where mechanical wear is unavoidable, including:

• Mining and underground equipment

• Robotics and automation systems

• Construction and heavy machinery

• Industrial manufacturing equipment

• Automotive and motorsport applications

7. When should I NOT use a braided aramid sleeve?

A braided aramid sleeve should not be used when:

• Direct flame exposure is present

• Radiant heat insulation is required

• Fire containment or thermal shielding is needed

In such cases, alternative fire-resistant or thermal protection solutions should be selected.

8. Does braided aramid sleeve affect hose or cable flexibility?

No. Despite its high strength, braided aramid sleeve remains flexible and does not significantly restrict hose or cable movement. This makes it suitable for dynamic applications involving bending, articulation, or vibration.

9. How is a braided aramid sleeve installed?

Braided aramid sleeves are typically installed using a slide-over method. They can be cut to length on-site and do not require adhesives or curing. The sleeve can be secured using clamps, cable ties, or shrink terminations depending on the application.

10. Where can I find technical specifications for braided aramid sleeve?

Detailed material information, performance characteristics, and application guidelines are available in the Braided Aramid Sleeve Technical Datasheet (PDF) .
For product details and downloads, please refer to the official product page:
https://www.pkfiresleeve.com/braided-aramid-sleeve_p245.html

Braided aramid sleeves are commonly used as an aramid sleeve for abrasion protection in industrial environments where mechanical wear is the primary risk. They are designed to protect hoses and cables from abrasion, cutting, and external mechanical damage, rather than heat or fire exposure.
