Aluminiumoxidevezelhuls voor thermische bescherming bij extreem hoge temperaturen

Product Overview

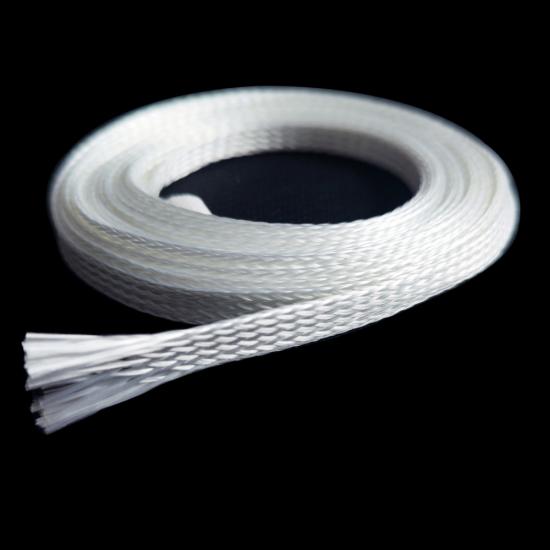

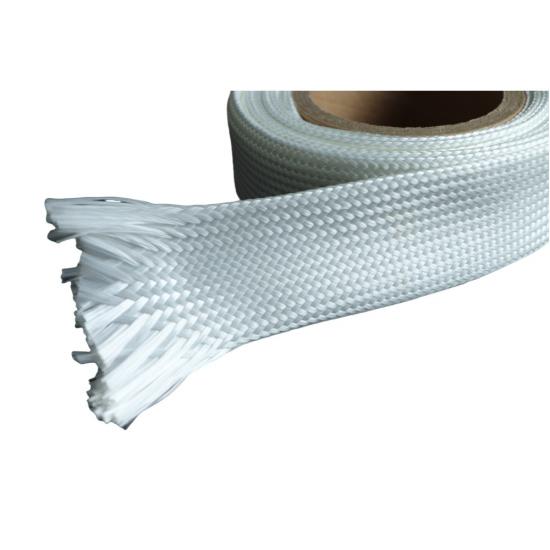

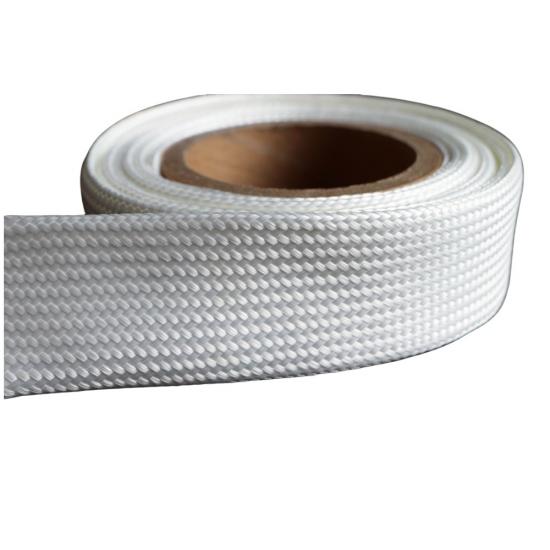

Alumina fiber sleeve is a high-temperature thermal protection sleeve designed for applications requiring exceptional heat resistance and dimensional stability. Manufactured from high-purity alumina-based fibers, this sleeve provides reliable insulation and protection in environments where conventional fiberglass or silica sleeves reach their performance limits.

The sleeve is commonly used to protect hoses, cables, wires, and components exposed to extreme radiant heat, molten splash proximity, or sustained high-temperature conditions in industrial processing environments.

Material & Construction

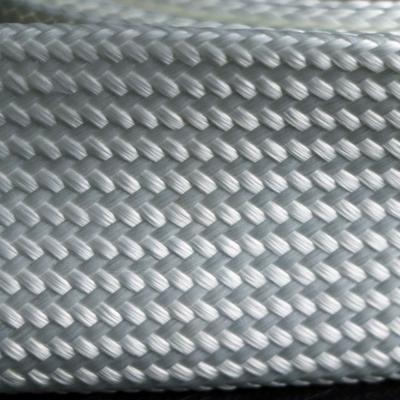

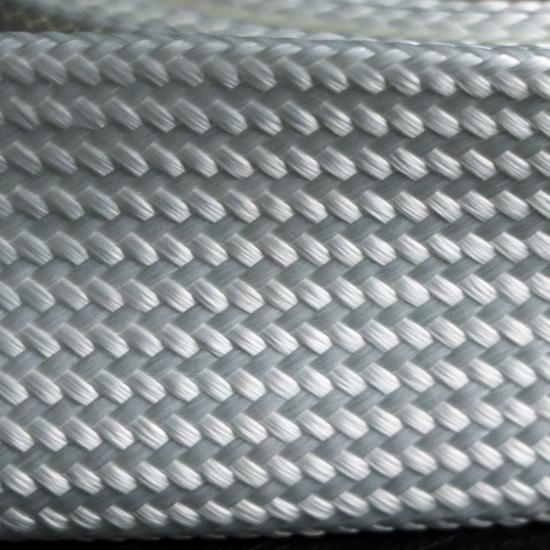

The alumina fiber sleeve is produced from continuous alumina fibers , braided or woven into a flexible tubular structure. Alumina fibers are known for their high melting point, excellent thermal stability, and resistance to chemical attack at elevated temperatures.

Key material characteristics include:

• High alumina content for superior temperature resistance

• Low thermal conductivity for effective heat insulation

• Excellent dimensional stability at extreme temperatures

• Non-combustible and non-conductive material properties

The flexible sleeve structure allows installation over straight or curved components while maintaining insulation performance.

Typical Applications

Alumina fiber sleeves are widely used in:

• Furnace and kiln equipment protection

• High-temperature industrial hoses and tubing

• Thermocouple and sensor wire insulation

• Molten metal handling and casting environments

• Heat treatment, metallurgy, and glass processing

• Protection of cables and components near heat sources

These applications are typically found in metallurgical processing, energy production, industrial furnaces, aerospace testing, and advanced manufacturing environments , where continuous high-temperature exposure is present.

Thermal Performance Characteristics

• Designed for continuous exposure to extremely high temperatures

• Maintains structural integrity under radiant heat and thermal shock

• Performs reliably in environments exceeding the limits of fiberglass and silica sleeves

Alumina fiber materials are suitable for sustained high-temperature use where long-term thermal stability is critical.

Engineering Considerations

Extreme Heat Exposure

Alumina fibers offer superior resistance to sustained and cyclic high-temperature exposure, making the sleeve suitable for furnace zones and heat-intensive industrial processes.

Thermal Shock Resistance

The fiber structure tolerates rapid heating and cooling cycles without cracking or loss of insulation performance.

Chemical Stability

Alumina fibers exhibit good resistance to many chemicals and corrosive atmospheres encountered in high-temperature industrial environments.

Technical Specifications

Installation & Use

• Slide the sleeve over hoses, cables, or components requiring protection

• Cut to required length using appropriate cutting tools

• Ensure full coverage of heat-exposed zones

• Secure ends mechanically if required for high-vibration environments

Limitations

• Not intended for use as a pressure-containing or structural component

• Mechanical abrasion resistance is lower than coated or metal-reinforced sleeves

• Chemical compatibility should be verified for highly aggressive environments

For applications involving heavy abrasion or molten metal splash, additional surface protection may be required.

RFQ Information

To provide accurate pricing and lead time, please include the following information when submitting your inquiry:

• Application description and operating environment

• Continuous and peak temperature requirements

• Required sleeve inner diameter and length

• Installation method (static / dynamic)

• Exposure to abrasion, molten splash, or chemicals

• Estimated quantity or annual usage

Providing complete application details helps ensure proper material selection and reliable performance.

Use Recommendation

Alumina fiber sleeves are recommended for extreme high-temperature insulation and protection applications where thermal stability, low heat transfer, and non-combustible materials are required .

performance.

Technical Documentation

Technical Overview – Alumina Fiber Sleeve (PDF)
This Technical Overview provides engineering-level information on material properties, thermal performance, installation considerations, limitations, and application guidance for alumina fiber sleeves used in extreme high-temperature industrial environments.
